HIGH-EFFICIENCY COMMERCIAL LED TUBE
POWERED BY
TECHNOLOGY
TECHNOLOGYCOMMERCIAL
T5 STANDARD LED TUBE LIGHTS
T5 LED tube delivering market-leading system efficacy of up to 220 lm/W with instant start, low-flicker operation and CRI ≥80. Available in 600–1500mm lengths with 120° clear or 140° frosted beam angles, housed in A6063 aluminium for a rated L70 lifetime of 100,000 hours.
KEY SPECIFICATIONS
EFFICACY
Up to 220 lm/W
INPUT VOLTAGE
AC 220–240V
IP RATING
IP20
DIMENSIONS
600mm / 900mm / 1200mm / 1500mm
LIFETIME
100,000 hours
CCT
3000K
COMPLIANCE
CE · UKCA · RoHS

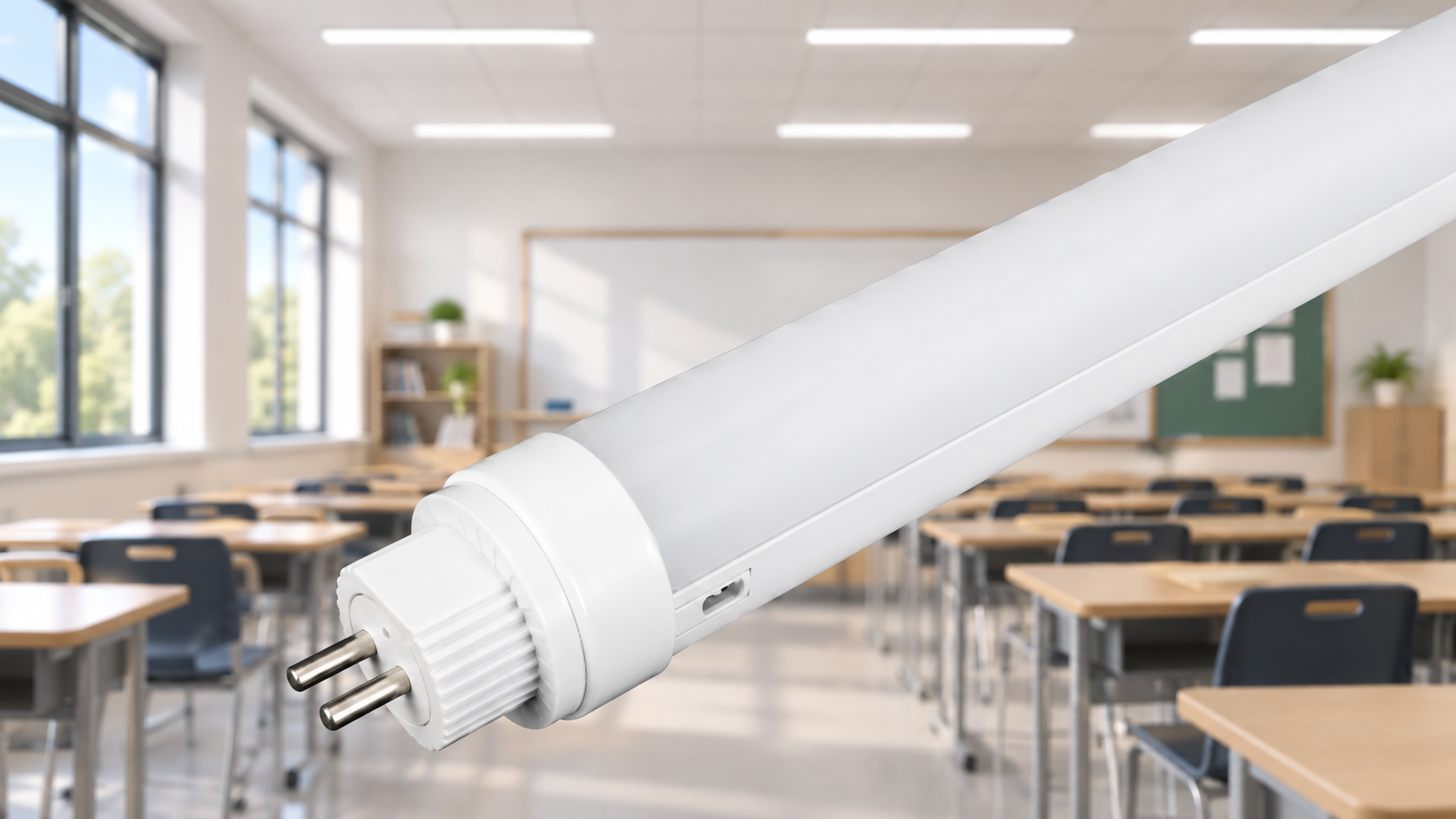

PRODUCT IN MOTION
ENGINEERED FOR DEMANDING ENVIRONMENTS
Cinematic build & light-quality showcase — precision optics, sealed housings and instant-start performance.
CERTIFICATIONS
CE
UKCA
RoHS
ErP
LVD
EN IEC 55015:2019+A11
EN IEC 61000-3-2:2019+A1
EN 61000-3-3:2013+A1+A2
EN 61547:2009
PROPRIETARY ENGINEERING PLATFORM
POWERED BYTECHNOLOGY
TECHNOLOGYMaximum useful light. Maximum efficiency.
Optimised optical, thermal and electrical design for high efficacy, long service life and reduced energy consumption.
KEY ENGINEERING FEATURES
Market-leading efficacy up to 220 lm/W — among the most efficient T5 LED tubes available in the UK and Europe
Instant start (<0.5s) with low-flicker operation and stable luminous flux for consistent colour performance
Available in 600–1500mm lengths with clear (120°) or frosted (140°) cover options for flexible light distribution
A6063 aluminium housing for effective thermal management, supporting L70 lifetime of 100,000 hours
Standard G5 or optional rotatable end cap; suitable for low ambient temperatures down to -20°C
FULL SPECIFICATION TABLE
PRODUCT CODES
LX-DGA00-600945-TS / LX-DGA00-9001245-TS / LX-DGA00-12001545-TS / LX-DGA00-15001545-TS
INPUT VOLTAGE
AC 220–240V
INPUT FREQUENCY
50/60Hz
POWER
600mm 9W / 900mm 12W / 1200mm 15W / 1500mm 24W
EFFICIENCY
Up to 220 lm/W
CRI
≥80
COLOUR TEMPERATURE
3000K / 4000K / 5000K / 6500K
BEAM ANGLE
Clear 120° / Frosted 140°
POWER FACTOR
≥0.9
START TIME
<0.5s
RATED CURRENT
0.2A – 0.5A (depending on wattage)
LUMEN MAINTENANCE
>70% @ 120,000 hrs
LENGTH
600mm / 900mm / 1200mm / 1500mm
DIAMETER
22mm
CONNECTOR
G5 (standard or rotatable end cap optional)
OPERATING TEMPERATURE
-20°C to +45°C
STORAGE TEMPERATURE
-30°C to +60°C
IP RATING
IP20
LIFETIME L70
100,000 hours
SWITCH CYCLES
50,000
WARRANTY
Up to 10 years
STANDARDS
CE, UKCA, RoHS, ErP, LVD, EN IEC 55015:2019+A11, EN IEC 61000-3-2:2019+A1, EN 61000-3-3:2013+A1+A2, EN 61547:2009
Need a custom specification?
Our engineering team can modify any parameter to suit your project requirements.
