INTRINSICALLY SAFE ILLUMINATION
HAZARDOUS
ATEX LED STRIP SERIES
ATEX and IECEx certified LED strip for Zone 1/21 & 2/22 hazardous area installations. Delivers up to 1,000 lm/m at 83 lm/W with CRI ≥80, housed in an IP67 / IK10 injection-moulded silicone enclosure.
KEY SPECIFICATIONS
LUMEN OUTPUT
1,000 lm/m
EFFICACY
83.33 lm/W
INPUT VOLTAGE
DC 24V
IP RATING
IP67
DIMENSIONS
W20mm x H10mm
LIFETIME
50,000 hours
COMPLIANCE
ATEX · IECEx · EN IEC 60079-0
VOLTAGE DROP PERFORMANCE
Measured at the front and tail of the strip with 18 AWG feed cables of 1-50m. Cable drop is the loss across the feed cable; strip drop is the loss through the strip itself. Lumen output is sampled at the first 1m of the strip.
DC 24V SUPPLY
84 LED/m · 20m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
23.6
21.9
0.4
1.7
980.21
10
21.9
20.8
2.1
1.1
620.99
20
21.0
20.2
3.0
0.8
439.53
30
20.4
19.7
3.6
0.7
314.75
40
20.1
19.5
3.9
0.6
262.39
50
19.9
19.4
4.1
0.5
228.76
70 LED/m · 20m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
23.7
22.3
0.3
1.4
901.80
10
22.0
21.1
2.0
0.9
585.72
20
21.2
20.5
2.8
0.7
421.55
30
20.7
20.1
3.3
0.6
332.08
40
20.4
19.8
3.6
0.6
279.85
50
20.0
19.6
4.0
0.4
212.42
56 LED/m · 25m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
23.7
22.0
0.3
1.7
734.41
10
22.1
21.0
1.9
1.1
495.25
20
21.2
20.4
2.8
0.8
360.23
30
20.7
20.0
3.3
0.8
272.57
40
20.4
19.8
3.6
0.6
229.73
50
20.0
19.6
4.0
0.4
174.01
42 LED/m · 30m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
23.7
21.8
0.3
1.9
535.38
10
22.3
21.0
1.7
1.3
380.22
20
21.3
20.3
2.7
1.0
274.03
30
20.8
20.0
3.2
0.8
215.08
40
20.5
19.8
3.5
0.7
187.77
50
20.2
19.6
3.8
0.6
150.74
DC 36V SUPPLY
88 LED/m · 20m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
35.6
34.2
0.4
1.4
812.56
10
33.9
32.9
2.1
1.0
585.50
20
32.9
32.0
3.1
0.9
457.17
30
32.1
31.5
3.9
0.6
351.61
40
31.6
31.0
4.4
0.6
295.38
50
31.2
30.7
4.8
0.5
250.63
66 LED/m · 25m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
35.7
34.1
0.3
1.6
608.68
10
34.1
32.9
1.9
1.2
460.87
20
32.9
32.0
3.1
0.9
339.61
30
32.3
31.5
3.7
0.8
283.50
40
31.8
31.2
4.2
0.6
237.46
50
31.5
30.9
4.5
0.6
210.34
44 LED/m · 30m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
35.7
34.2
0.3
1.5
589.38
10
34.3
33.1
1.7
1.2
459.43
20
33.3
32.3
2.7
1.0
366.75
30
32.7
31.9
3.3
0.8
311.71
40
32.2
31.5
3.8
0.7
266.15
50
31.9
31.2
4.1
0.7
239.66
22 LED/m · 30m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
35.8
35.0
0.2
0.8
298.79
10
35.0
34.2
1.0
0.8
262.06
20
34.3
33.6
1.7
0.7
229.32
30
33.7
33.1
2.3
0.6
201.44
40
33.3
32.8
2.7
0.5
182.71
50
33.0
32.4
3.0
0.6
169.02
DC 48V SUPPLY
84 LED/m · 20m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
47.9
46.7
0.1
1.2
-
10
46.2
45.1
1.8
1.1
-
20
44.6
43.8
3.4
0.8
-
30
43.7
42.9
4.3
0.8
-
40
42.7
42.2
5.3
0.5
-
50
42.1
41.5
5.9
0.6
-
56 LED/m · 25m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
47.7
46.5
0.3
1.2
-
10
46.4
45.3
1.6
1.1
-
20
45.1
44.2
2.9
0.9
-
30
44.2
43.3
3.8
0.9
-
40
43.5
42.7
4.5
0.8
-
50
42.9
42.1
5.1
0.8
-
28 LED/m · 30m STRIP · 18 AWG
CABLE (M)
FRONT (V)
TAIL (V)
CABLE DROP (V)
STRIP DROP (V)
LUMENS @ 1M
1
47.9
47.0
0.1
0.9
-
10
47.0
46.1
1.0
0.9
-
20
46.1
45.3
1.9
0.8
-
30
45.3
44.6
2.7
0.7
-
40
44.7
44.0
3.3
0.7
-
50
44.1
43.5
3.9
0.6
-

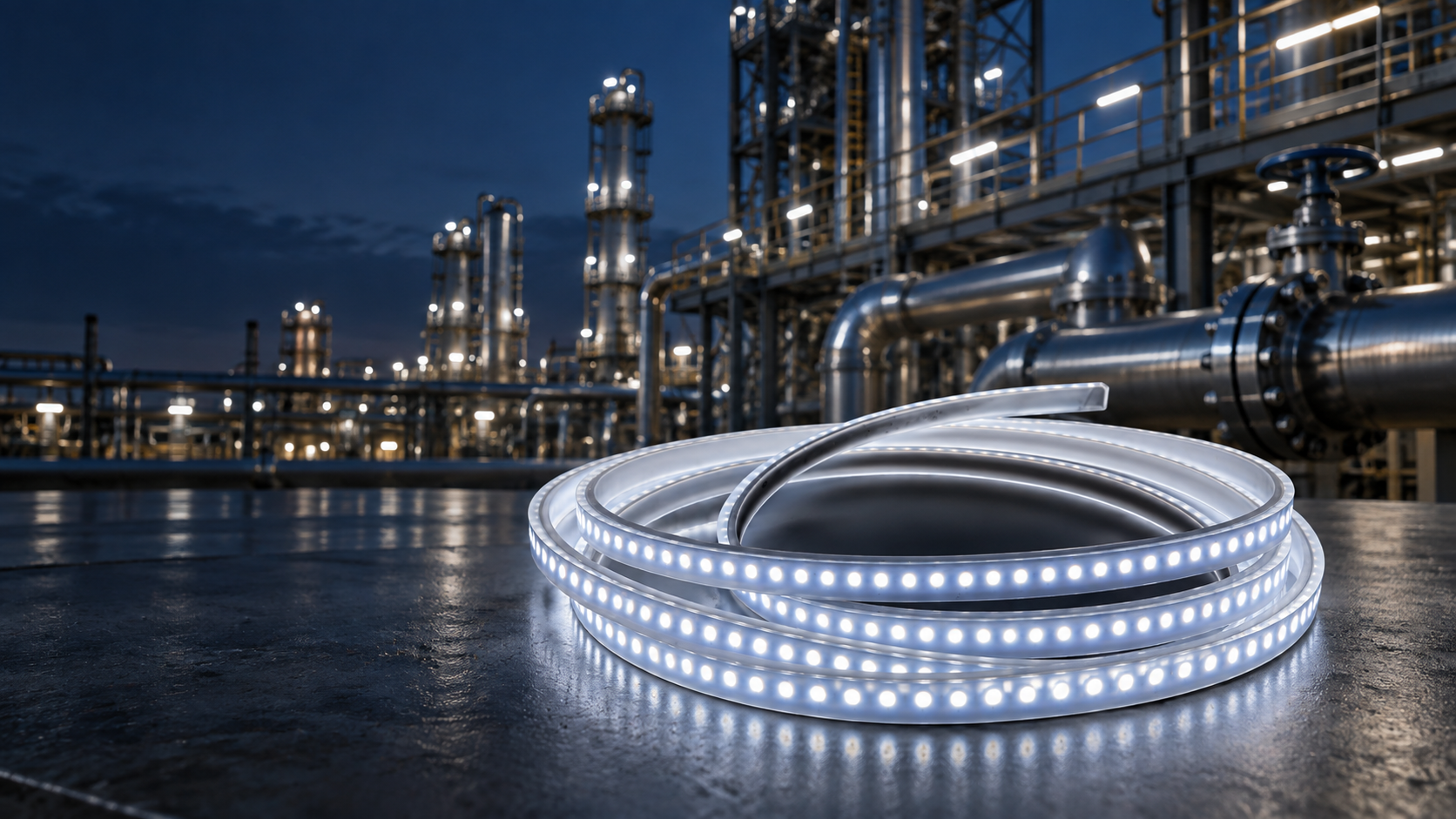

PRODUCT IN MOTION
ENGINEERED FOR DEMANDING ENVIRONMENTS
Cinematic build & light-quality showcase — precision optics, sealed housings and instant-start performance.
CERTIFICATIONS
ATEX
IECEx
EN IEC 60079-0
EN IEC 60079-18
EN IEC 60079-28
IP67
IK10
EN 62471
UL 844
CSA C22.2 #137
Class I Div 2 (A,B,C,D,T6)
KEY ENGINEERING FEATURES
IP67 / IK10-rated injection-moulded silicone housing (UL94 HB) providing sealed ingress and impact protection to -40°C to +80°C
24V DC input, 12W/m power consumption, 83.33 lm/W efficacy — additional voltage options available on request
High-efficiency SMD LED arrays delivering 1,000 lm/m at 99.9° beam angle with CRI ≥80 and RG0 photobiological safety (IEC/EN 62471)
Available in white for continuous illumination and coloured variants for safety and signalling applications
L70 rated lifespan exceeding 50,000 hours for low-maintenance, energy-efficient operation
UV, solvent and saltwater resistant construction rated for damp or wet location installation, backed by a 5-year warranty
Also certified to UL 844 / CSA C22.2 #137 for Class I Division 2 Groups A, B, C, D, T6 hazardous locations for North American installations
FULL SPECIFICATION TABLE
PRODUCT CODE
LXEX-ST30126500
EX MARKING
II 2G Ex mb op is IIC T4 Gb; II 2D Ex mb op is IIIC T135°C Db, -40°C ≤ Ta ≤ +80°C
CERTIFICATES
ATEX / IECEx, EN IEC 60079-0, EN IEC 60079-18, EN IEC 60079-28
NORTH AMERICAN HAZARDOUS RATING
Class I Division 2, Groups A, B, C, D, T6 (UL 844, CSA C22.2 #137)
MINIMUM BEND DIAMETER
Ø300mm — bend along the light surface only
ENVIRONMENTAL RESISTANCE
UV, solvent and saltwater resistant
SERVICE ENVIRONMENT
Damp or wet location
WARRANTY
5 years
INPUT VOLTAGE
DC 24V
POWER CONSUMPTION
12 W/m (system power 180W)
LUMINOUS FLUX
1,000 lm/m
EFFICIENCY
83.33 lm/W
POWER FACTOR
1
BEAM ANGLE
99.9° (average beam angle 50%)
CCT
6500K
CRI
≥80
NOMINAL STRIP LENGTH
2 x 15m = 30m (other lengths available)
MAXIMUM CONNECTABLE LENGTH
30m
DIMENSIONS
W20mm x H10mm
HOUSING MATERIAL
Injection-moulded silicone (silica gel)
DIFFUSER TYPE
Integrated silicone diffuser
END CONNECTOR TYPE
Injection-moulded waterproof connector
WEIGHT
285 g/m
FLAMMABILITY (UL94)
HB
OPERATING TEMPERATURE
-40°C to +80°C
IP RATING
IP67
IK RATING
IK10
LED LIFETIME (L70)
50,000 hours
PHOTOBIOLOGICAL SAFETY
RG0 (IEC/EN 62471)
